Push Pull Gauge

Our push-pull gauge or force gauge, as it is popularly called, is a small measuring instrument used across all industries to measure the force during a push or pull test.

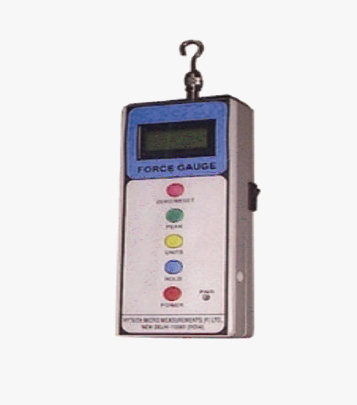

A digital force gauge is a handheld instrument that contains a load cell, electronics, software and a display. RS-232 output option is also available.

Applications exist in research and development, laboratory, quality, production and field environment.
Specifications - Manual Stand of Push Pull Gauge
Material : Mild Steel chrome plated powder coated.
Stand Size : Height - 400 mm
Width - 800 mm
Depth - 800 mm
Push Pull Gauge Mount : Can Mount HMM-Hytech (5 Kg to 100 Kg) Push Pull Gauges
Height Adjustable : 10 mm to 200 mm
Force Application : Hand Wheel
Mounting : Table Top
Others : On requirement - Motorized version also available.

Technical Specifications

Make HMM-Hytech
Display Type LCD (Liquid crystal display) 5 digits, Back light
Function Tension & Compression (Push & Pull). Normal force, Peak hold (Max. load).
Peak hold Will freeze the display value of the Peak load (Max. load).
Zero Zero button.
Unit select Kg/LB/Newton
Measure Capacity 100 Kg (Special Design) up to 50Kg standard, 100Kg optional.
Accuracy + (0.5% + 2 digits), within 23 + 5° C.
Data output RS-232 serial computer interface. (Optional)
Over range Indicator Display show "----------------" when in over range status
Overload Capacity Max. 20% of capacity.
Full scale Deflection Less than 1 mm.
Zero/tare Control Max. full capacity.
Circuit Exclusive microprocessor LSI-circuit.
Sensor Type S type load cell.
Power Supply Li-ion Rechargeable battery.
Power Consumption Approx. DC 28 mA
Operating Temperature 0° to 50° C (32° F to 122° F)
Operating Humidity Less than 80% RH.
Dimension 185 x 70 x 35mm.
Weight. 800gm
Mounting Holes Main Instruments with mounting holes are provided on the back case, easy stand mounting.
Accessories Included Operating manual………………………………………… 1 PC. 100 Kg sensor with 2 hooks and 2 meter cable………1 PC. Hard carrying case…...1 PC.
Optional Accessories - RS232 cable
-Software for data logging & data recorder

  • Large LCD display with back light.
  • Tension & Compress capability.
  • 3 Display units Kg/LB/Newton. (Other units optional).
  • Peak Hold (Max. Load) can be held in display during Tension or Compression measurements.
  • Zero Button "Peak Hold" button.
  • Over load protection.
  • Hand held & Stand mounting available. (Stand Optional).
  • Low power consumption gives long battery life.
  • Build in low battery indicator.
  • Microcontroller circuit.
  • RS-232 computer interface. (Optional).
  • Power supply built in DC 9V adapter input socket.
