Digital Torque Wrench Calibrators
With the increasing sophistication of machinery,
proper torquing of nuts, bolts, screws etc, has become very important.
Various types of torque wrenches are available to achieve the prescribed
tightening. To ensure that torquing tools are within specifications, they
should be periodically checked on a torque tester.

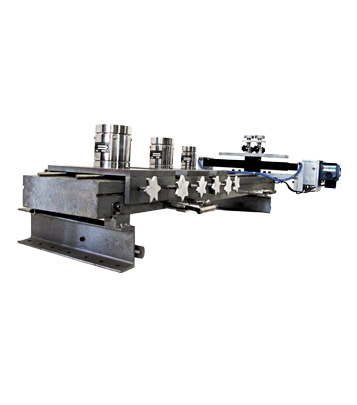

The DT series of Digital torque testers, provided by Hytech are available
for testing of various tools in the static mode, from 10 Nm to 4000 Nm.
There are other torque testers available for testing hydraulic torque
wrenches upto 32000 Nm. We also provide customized and computerized torque
testing solutions.
Technical Specifications
| Accuracy |
Better than 0.5% (20% to 100% of Range) |
| Mounting |
Table Top Horizontal |
| Display |
4 Digit LED Display |
| LED |
12.5 mm High |
| Power |
230 V/AC ± 10% 50Hz |
| Application |
Ranges |
| Quality Assurance |
0-100 (0-10, 100 Nm) |
| Sample Testing of Hand Tools |
0-500 (0-10, 10-100, 50-500 Nm) |
| Calibration of Torque Wrenches |
0-1000 (0-10, 50-500, 100-1000 Nm) |
| Ultimate Strength Tests of Hand Tools |
0-2000 (0-20, 20-200, 200-2000 Nm) |
| Pneumatic Screw Drivers |
0-4000 (0-50, 50-500, 500-4000 Nm) |
| Production Line Tool Verification |
Click to See our Models |
Torque Wrench Calibrator - Models
| Model |
Range |
Least Count |
Operation |
| DT-1TC |
100 Nm |
0.05 Nm |
Crank |
| DT-2TC |
500 Nm |
0.20 Nm |
Crank |
| DT-3TC |
1000 Nm |
0.50 Nm |
Crank |
| DT-4TC |
2000 Nm |
1.0 Nm |
Crank |
| Model |
Range |
Least Count |
Operation |
| DT-1TM |
100 Nm |
0.05 Nm |
Motorised |
| DT-2TM |
500 Nm |
0.20 Nm |
Motorised |
| DT-3TM |
1000 Nm |
0.50 Nm |
Motorised |
| DT-4TM |
2000 Nm |
1.0 Nm |
Motorised |
| DT-5TM |
4000 Nm |
1.0 Nm |
Motorised |
| DT-3T-PC |
0-4000 Nm |
1.0 Nm |
Computerized |
